sirf::Registration< dataType > Class Template Reference

Base class for all SIRF registration. More...

#include "Registration.h"

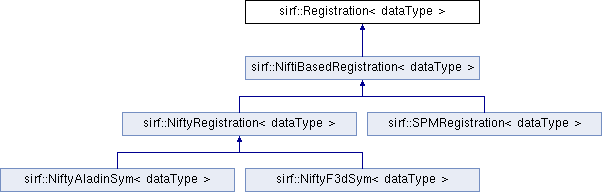

Inheritance diagram for sirf::Registration< dataType >:

Public Member Functions
	Registration ()
	Constructor.
virtual	~Registration ()
	Destructor.
void	set_reference_image (const std::shared_ptr< const ImageData > reference_image_sptr)
	Set reference image.
void	set_floating_image (const std::shared_ptr< const ImageData > floating_image_sptr)
	Set floating image. Will clear any previous floating images.
void	add_floating_image (const std::shared_ptr< const ImageData > floating_image_sptr)
	Add floating image.
void	set_reference_image_filename (const std::string &filename)
	Set reference image filename. Will be read as NiftiImageData.
void	set_floating_image_filename (const std::string &filename)
	Set floating image filename. Will be read as NiftiImageData.
void	add_floating_image_filename (const std::string &filename)
	Add floating image filename. Will be read as NiftiImageData.
void	clear_floating_images ()
	Clear floating images.
virtual void	process ()=0
	Process.
virtual const std::shared_ptr< const ImageData >	get_output_sptr (const unsigned idx=0) const
	Get registered image.
virtual const std::shared_ptr< const Transformation< dataType > >	get_deformation_field_forward_sptr (const unsigned idx=0) const
	Get forward deformation field image.
virtual const std::shared_ptr< const Transformation< dataType > >	get_deformation_field_inverse_sptr (const unsigned idx=0) const =0
	Get inverse deformation field image.
virtual const std::shared_ptr< const Transformation< dataType > >	get_displacement_field_forward_sptr (const unsigned idx=0) const =0
	Get forward displacement field image.
virtual const std::shared_ptr< const Transformation< dataType > >	get_displacement_field_inverse_sptr (const unsigned idx=0) const =0
	Get inverse displacement field image.

Protected Member Functions
virtual void	check_parameters () const
	Check parameters.

Protected Attributes
std::shared_ptr< const ImageData >	_reference_image_sptr
	Reference image.
std::vector< std::shared_ptr< const ImageData > >	_floating_images
	Floating image.
std::vector< std::shared_ptr< ImageData > >	_warped_images
	Warped image.
std::vector< std::shared_ptr< Transformation< dataType > > >	_def_fwd_images
	Forward deformation field image.
std::string	_reference_image_filename = ""
	Reference image filename.
std::vector< std::string >	_floating_image_filenames
	Floating image filenames.

Detailed Description

template<class dataType>
class sirf::Registration< dataType >

Base class for all SIRF registration.

Registration classes can be set up with parameter files or inputting arguments directly with the set_parameter() method.

If using a parameter file, it should have interfile-like syntax. The variables will be stored as a vector of floats and converted into the required type (int, unsigned int, etc) if necessary. Multiple variables for a given parameter should be comma separated. Spaces and tabs will be ignored. For the title, it doesn't matter what is written as it will be ignored, but something has to be there (otherwise the first parameter will be ignored). Possible parameters are all the Set<something> methods for each class (e.g., nifty_aladin::SetPerformRigid) and should be written in the parameter file without the "Set" (e.g., PerformRigid).

An example is given below:

    SomeTitle :=
        ReferenceTimePoint := 1
        FloatingTimePoint := 2
        LinearEnergyWeights := 1.5,1
        AdditiveMC :=
    end :=

More examples can be found in data/examples/Registration/paramFiles

Author

Richard Brown

SyneRBI

---

The documentation for this class was generated from the following files:

• /home/sirfuser/devel/buildVM/sources/SIRF/src/Registration/cReg/include/sirf/Reg/Registration.h
• /home/sirfuser/devel/buildVM/sources/SIRF/src/Registration/cReg/Registration.cpp
